mouse-in-element

Track the pointer position relative to an element.

Minimal setup

Use a Vue 3.5+ project with Vue SFC compilation configured (see Vite+ integration).

vp install @vizejs/composable

Import the entry directly. Call lifecycle-bound utilities inside <script setup> so cleanup follows the component scope; consult the runtime contract for this entry's SSR and hydration behavior.

import { useMouseInElement } from "@vizejs/composable/mouse-in-element";

Try it

Compare native client and guide-relative coordinates

Read an element's current geometry on actual mouse moves and preserve its last inside location when the pointer leaves.

Open the interactive example

What to observe: Move inside the pad, shift it and move again. Relative coordinates use the new transformed rectangle. Leaving with handleOutside: false updates Outside but freezes the last inside coordinates. Stop relative readings, then move: the underlying client coordinates still change while relative state stays fixed.

useMouseInElement builds on the real client-coordinate mouse observer. Every relevant move reads getBoundingClientRect; transforms and scrolling are reflected on the next move, without an independent resize subscription. Its stop control freezes the relative watcher, not the underlying mouse subscription; the component scope disposes both. Zero-size rectangles count as outside. SSR has zero geometry and isOutside: true, with no measured browser position. The displayed coordinates describe this iframe, and the sample's native checkbox only changes its own CSS transform.

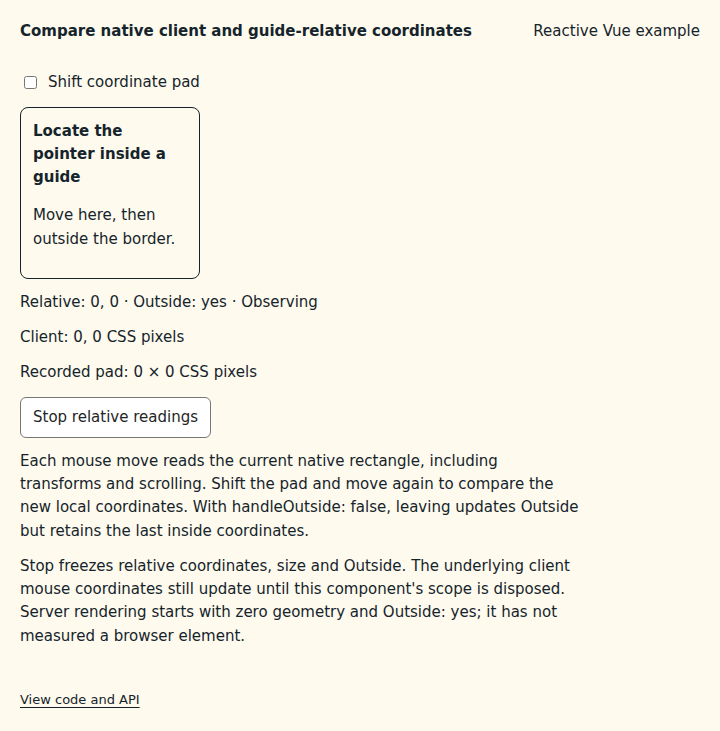

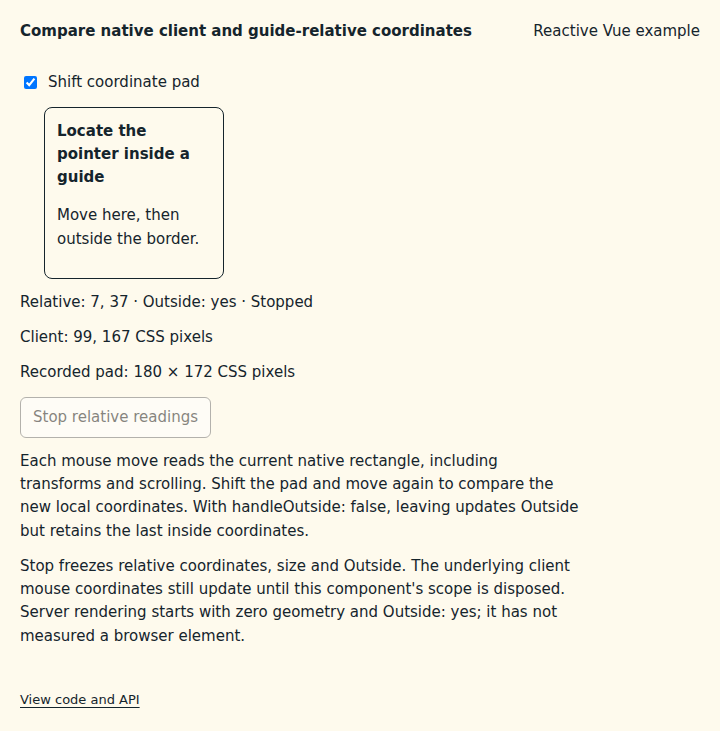

Compare the initial and interacted states

Copy the example

Save this complete SFC in your Vue project. Its public imports and source are the same ones executed in the preview.

<script setup lang="ts">
import { ref, useTemplateRef } from "vue";
import { useMouseInElement } from "@vizejs/composable/mouse-in-element";

const pad = useTemplateRef<HTMLElement>("pad");
const shifted = ref(false);
const stopped = ref(false);
const { x, y, elementX, elementY, elementWidth, elementHeight, isOutside, stop } =
  useMouseInElement(pad, { handleOutside: false });

function stopRelativeReadings(): void {
  stop();
  stopped.value = true;
}
</script>

<template>
  <div class="composable-example">
    <label class="coordinate-toggle"
      ><input v-model="shifted" type="checkbox" /> Shift coordinate pad</label
    >
    <section ref="pad" class="coordinate-pad" :class="{ shifted }" aria-label="Coordinate pad">
      <strong>Locate the pointer inside a guide</strong>
      <p>Move here, then outside the border.</p>
    </section>
    <output aria-live="polite">
      Relative: {{ Math.round(elementX) }}, {{ Math.round(elementY) }} · Outside:
      {{ isOutside ? "yes" : "no" }} · {{ stopped ? "Stopped" : "Observing" }}
    </output>
    <p class="mouse-client">Client: {{ Math.round(x) }}, {{ Math.round(y) }} CSS pixels</p>
    <p class="mouse-size">
      Recorded pad: {{ Math.round(elementWidth) }} × {{ Math.round(elementHeight) }} CSS pixels
    </p>
    <button type="button" :disabled="stopped" @click="stopRelativeReadings">
      Stop relative readings
    </button>
    <p>
      Each mouse move reads the current native rectangle, including transforms and scrolling. Shift
      the pad and move again to compare the new local coordinates. With handleOutside: false,
      leaving updates Outside but retains the last inside coordinates.
    </p>
    <p>
      Stop freezes relative coordinates, size and Outside. The underlying client mouse coordinates
      still update until this component's scope is disposed. Server rendering starts with zero
      geometry and Outside: yes; it has not measured a browser element.
    </p>
  </div>
</template>

<style scoped>
.coordinate-toggle {
  display: inline-flex;
  align-items: center;
  gap: 8px;

  input {
    inline-size: auto;
  }
}
.coordinate-pad {
  box-sizing: border-box;
  inline-size: 180px;
  max-inline-size: calc(100% - 24px);
  min-block-size: 120px;
  padding: 12px;
  border: 1px solid currentColor;
  border-radius: 8px;

  &.shifted {
    transform: translateX(24px);
  }
}
</style>

Runtime contract

API

useMouseInElement

Track the pointer position relative to an element. Built on useMouse in client coordinates: every move re-reads the element rectangle, so transforms and scrolling are reflected. Server renders report zero geometry and isOutside: true.

function useMouseInElement( target: MaybeElementTarget, options: UseMouseInElementOptions = {}, ): MouseInElementControls

Types

UseMouseInElementOptions

Options for useMouseInElement.

MouseInElementControls

Reactive state returned by useMouseInElement.
