Checkbox

Headless Checkbox; covers shadcn/ui Checkbox, Reka UI Checkbox, React Aria Checkbox.


Package	`@vizejs/ui/checkbox`
Maturity	stable
Own the source	`vize lib pull checkbox`
Requires	controllable-state
Aliases	checkbox control, mixed checkbox
Covers	shadcn/ui Checkbox, Reka UI Checkbox, React Aria Checkbox

Minimal setup

Use a Vue 3.5+ project with Vue SFC compilation configured (see Vite+ integration).

vp install @vizejs/ui

Add the public import below to <script setup lang="ts">. Components provide behavior without styles; the preview uses optional Paper styles.

import { Checkbox } from "@vizejs/ui/checkbox";

Or copy the source into your project with vize lib pull checkbox (see Source Distribution).

Try it

This is the basic example maintained with the component source, using the public package imports. The preview adds the optional Paper styles.

Open the interactive example · Styling these components

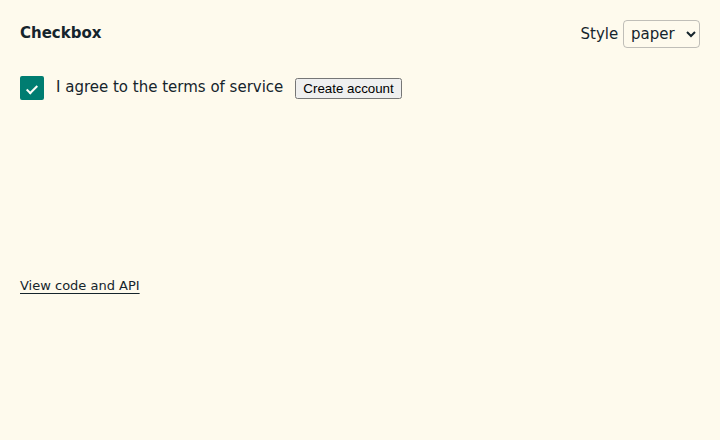

Checkbox example rendered in a real browser

Copy the example

<!-- Native checkbox bound with v-model and labelled through a matching label element. -->
<script setup lang="ts">
import { ref, useId } from "vue";

import { Checkbox } from "@vizejs/ui/checkbox";

const accepted = ref(false);
const checkboxId = useId();
</script>

<template>
  <form>
    <Checkbox :id="checkboxId" v-model="accepted" name="terms" />
    <label :for="checkboxId">I agree to the terms of service</label>
    <button type="submit" :disabled="!accepted">Create account</button>
  </form>
</template>

API

`Checkbox`

Source: src/families/selection/checkbox/checkbox-control.vue

Props

Prop	Type	Default	Description
`modelValue`	`boolean`	`undefined`	Controlled checked value. `undefined` selects uncontrolled behavior.
`defaultChecked`	`boolean`	`false`	Initial unchecked or checked state for uncontrolled use.
`indeterminate`	`boolean`	`false`	Render and announce a mixed checked state.
`disabled`	`boolean`	`false`	Disable interaction and native form submission.
`ariaLabel`	`string`	`undefined`	Accessible name when no associated label supplies one.

Events

Event	Payload	Description
`update:modelValue`	`[value: boolean]`	Fired when the checked state requests a new controlled boolean value.
`update:indeterminate`	`[value: boolean]`	Fired when user interaction emits the next mixed-state boolean.
`change`	`[value: boolean, nativeEvent: Event]`	Fired after the native checkbox change event is processed with the next checked boolean and native `Event`.

Exposed

Member	Type	Description
`element`	`Readonly<ShallowRef<HTMLElement \| null>>`	Template ref to the rendered root element.
`checked`	—
`focus`	—
`reset`	—
`setChecked`	—

Behavior

Normative state × input → outcome table for checkbox-control.vue (@vizejs/ui/checkbox). Every row is proven by the named mounted-DOM test in src/families/selection/checkbox/checkbox.test.ts; a row without a passing test is a contract violation.

#	State	Input	Outcome	Proven by
C1	any	render	native `input[type=checkbox]`, accessible name from `ariaLabel`	`renders a native checkbox with an accessible name and focus control`
C2	any	exposed `focus()`	input receives focus	`renders a native checkbox with an accessible name and focus control`
C3	unchecked	render	`aria-checked="false"`, `data-state="unchecked"`	`reports aria-checked across unchecked, checked, and mixed states`
C4	checked	render	`aria-checked="true"`, `data-state="checked"`	`reports aria-checked across unchecked, checked, and mixed states`
C5	indeterminate	render	`aria-checked="mixed"`, `data-state="indeterminate"`, native `.indeterminate`	`reports aria-checked across unchecked, checked, and mixed states`
C6	uncontrolled	pointer click	toggles; emits `update:modelValue` then `change`, in that order	`toggles with a pointer click and emits model before change`
C7	uncontrolled	Space	toggles exactly once like a native checkbox	`toggles with Space like a native checkbox`
C8	wrapped in `<label>`	click on the label	toggles the checkbox (label association)	`clicking the associated label toggles the checkbox`
C9	controlled	pointer click	emits the request; the rendered state reverts to the prop value	`controlled: the parent-provided value always wins`
C10	controlled	prop update	rendered state follows `modelValue`	`controlled: the parent-provided value always wins`
C11	uncontrolled, seeded	render	`defaultChecked` seeds the initial state	`uncontrolled: defaultChecked seeds state and reset restores it`
C12	uncontrolled, seeded	exposed `reset()`	restores the default state	`uncontrolled: defaultChecked seeds state and reset restores it`
C13	indeterminate	pointer click	emits `update:indeterminate` `false` and `change` `true`	`indeterminate announces mixed and requests clearing on toggle`
C14	disabled	click / Space	no toggle, no `change`	`disabled checkbox ignores pointer and keyboard activation`
C15	disabled	Tab	skipped by the tab order	`disabled checkbox ignores pointer and keyboard activation`

Mixed-state precedence (indeterminate wins over checked) is additionally pinned as pure logic by gives the mixed visual state precedence.
